Marine High Pressure Oil-conveying Rubber Hose

Construction: Steel wire spiral reinforced layer, and wear resistant synthetic rubber cover.
Tube: Oil resistant synthetic rubber.
Reinforcement: Steel wire spiral reinforced layer reinforced.
Cover: oil, wear, and weather resistant synthetic rubber cover.
Application: For carrying natural gas, petroleum, etc. on sea floor.
Working Temperature:  -40°C ~ +100°C


Marine High Pressure Oil-conveying Rubber HoseMarine High Pressure Oil-conveying Rubber Hose

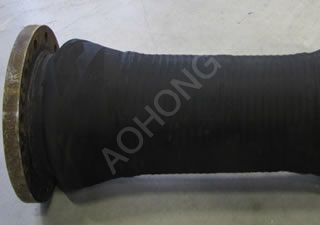

Structure pictureReal product picture

Specification:
Hose sizeInside DiameterReinforcement DiameterOutside DiameterWorking PressureProof PressureBurst PressureMin.Bend RadiusWeight
mmmmmmMPAPsiMpaPsiMPaPsimmKg/m
2sp-152-8152±2.0173±3.0180±4.081159162318243477228018
2sp-203-8203±2.0225±3.0232±4.081159162318243477305024
2sp-254-8254±2.0280±3.0288±4.081159162318243477381030
2sp-305-16305±2.0330±3.0338±4.081159162318243477451036
4sp-152-16152±2.0184±3.0192±4.0162318324636486955258024
4sp-203-16203±2.0236±3.0243±4.0162318324636486955335031
4sp-254-16254±2.0291±3.0299±4.0162318324636486955411039
4sp-305-16305±2.0341±3.0350±4.0162318324636486955481047




*

*

*

*
