Nylon air tube
Other name: Nylon hose, Nylon air hose, PA hose, PA tube, PA-6 Pneumatic hose, nylon brake hose, air brake hose Material: High quality PA, Nylon, Polyamide, Feature: Smooth surface, wear-resistant, high pressure resistance, corrosion resistance, safe and reliable. Application: Fluid air, water, oil; Air brake systems; Fuel lines; Instrumentation compressed air lines; Low pressure hydraulic lines; widely used for automobiles, machines, etc. Working temperature: -40~+120°C Standards: SAE J844 J1402

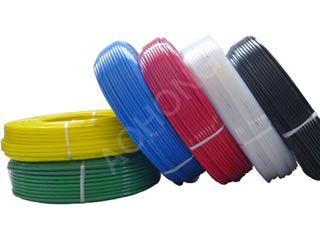

| | |  |  | | Real product picture | Real product picture |
Specification:Size | O.D. | Wall Thickness | Working Pressure | Min. Burst
pressure | Tolerance | O.D. | I.D. | mm | mm | mm | Mpa | Mpa | mm | mm | 4×0.75 | 4 | 0.75 | 2.4 | 9.5 | ±0.1 | ±0.1 | 4×1 | 4 | 1 | 2.75 | 11 | ±0.1 | ±0.1 | 4.7×0.61 | 4.7 | 0.61 | 2.5 | 11 | ±0.1 | ±0.1 | 5×1 | 5 | 1 | 2 | 8 | ±0.1 | ±0.1 | 6×1 | 6 | 1 | 2 | 8 | ±0.1 | ±0.1 | 6×1.5 | 6 | 1.5 | 2 | 8 | ±0.1 | ±0.1 | 7×1 | 7 | 1 | 2 | 8 | ±0.1 | ±0.1 | 8×1 | 8 | 1 | 2 | 8 | ±0.1 | ±0.1 | 8×1.5 | 8 | 1.5 | 2.1 | 8.5 | ±0.15 | ±0.1 | 9×1.5 | 9 | 1.5 | 2 | 8 | ±0.15 | ±0.1 | 10×1 | 10 | 1 | 1.9 | 7.5 | ±0.15 | ±0.1 | 10×1.25 | 10 | 1.25 | 2.1 | 8.3 | ±0.15 | ±0.1 | 10×1.5 | 10 | 1.5 | 2.1 | 8.5 | ±0.15 | ±0.1 | 12×1.25 | 12 | 1.25 | 2.1 | 8.2 | ±0.15 | ±0.1 | 12×1.5 | 12 | 1.5 | 2.1 | 8.4 | ±0.15 | ±0.1 | 14×1 | 14 | 1 | 1.9 | 7.7 | ±0.15 | ±0.15 | 14×1.5 | 14 | 1.5 | 2 | 8 | ±0.15 | ±0.15 | 15×1 | 15 | 1 | 1.8 | 7.5 | ±0.15 | ±0.15 | 15×1.5 | 15 | 1.5 | 1.9 | 7.8 | ±0.15 | ±0.15 | 16×1.5 | 16 | 1.5 | 2 | 8.2 | ±0.15 | ±0.15 | 18×1 | 18 | 1 | 1 | 4.25 | ±0.15 | ±0.15 | 18×1.25 | 18 | 1.25 | 1.4 | 5.5 | ±0.15 | ±0.15 |
|
