Air Brake Hose
Other name: Rubber brake hose, Auto brake hose, Brake tube, Flexible brake rubber hose
Tube: NBR black, smooth, oil resistant
Reinforcement: textile braided high tensile synthetic yarn
Cover: black CR, Ozone and Abrasion resistant, smooth
Applications: for pneumatic air brake system, also suitable as hydraulic low pressure hose.

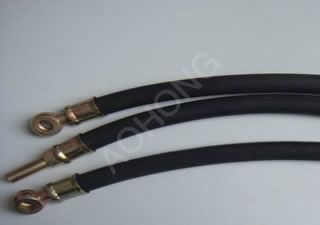

Working Temperature: -40°C + 100°C | | |  |  | | Structure picture | Real product picture | | | |
Specification:| ID | ID | Wall | WP | BP | MIN RADIUS | WEIGHT | | mm | inch | mm | bar | bar | mm | kg/m | | 10 | 3/8" | 4,5 | 10 | 60 | 30 | 0.32 | | 13 | 1/2" | 4,5 | 10 | 60 | 40 | 0.38 | | 16 | 5/8" | 5,5 | 10 | 60 | 55 | 0.53 |
|
