Twin Welding Hose
Other name: Rubber Twin Welding Hose, Flexible Reinforced welding Hoses, Reinforced twin welding hose pipe line.
Tube: Black, smooth, synthetic rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Blue and red, smooth synthetic rubber, abrasion, weather and abrasion resistant
Application: Suitable for welding and cutting equipment to transport oxygen and acetylene.

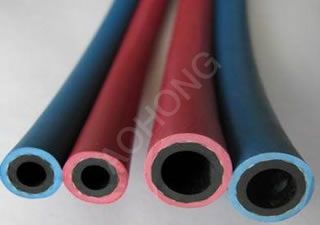

Working Temperature: -35℃ to 90℃. | | |  |  | | Structure picture | Real product picture | | | |
Specification:| I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. | | MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL | | 5 | 3/16" | 12 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.13 | 100±1% | | 6 | 1/4" | 13 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.15 | 100±1% | | 8 | 5/16" | 15 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.23 | 100±1% | | 10 | 3/8" | 17 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.26 | 100±1% | | 13 | 1/2" | 22 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.36 | 100±1% |
|
