GOST 10362-76 Pressure Rubber Hose
Other name: GOST Pressure Rubber Hose, rubber hose with fiber reinforced, Oil resistance Pressure rubber hose, Pressure rubber hose with thread insertion, Pressure oil hose, Pressure air hose, Pressure acid hose.
Construction: Pressure rubber hoses with cotton intension, braided or winded, not reinforced.
Application: Used as flexible pipelines for delivering air, noble gases and liquids under pressure，oil & benzine resistance, acid resistance.
Working Temperature: -50°C ~+90°C; in cold climate, -60°C ~ +90°C.

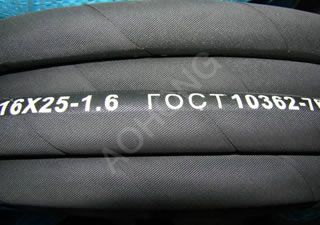

Work pressure: 1.6MPa (16kgf/cm2) ~ 4.0MPa (40kgf/cm2).| | |  |  | | Structure picture | Real product picture | | | |
Specification:| ID x OD | W.P | ID x OD | W.P | | mm | Mpa | mm | Mpa | | 6,0 x 13,5 | 2,94 | 16,0 x 25,0 | 1,6 | | 6,0 x 14,0 | 1,6 | 18,0 x 27,0 | 1,6 | | 6,0 x 15,0 | 4,0 | 20,0 x 29,0 | 1,6 | | 8,0 x 15,5 | 1,0 | 25,0 x 35,0 | 1,6 | | 8,0 x 16,5 | 1,6 | 32,0 x 42,5 | 1,0 | | 8,0 x 18,0 | 1,6 | 30,0 x 39,0 | 0,29 | | 10,0 x 17,5 | 1,47 | 38,0 x 47,5 | 0,3 | | 10,0 x 18,5 | 1 | 42,0 x 52,0 | 0,29 | | 10,0 x 20,0 | 0,98 | 45,0 x 55,0 | 0,29 | | 12,0 x 20,0 | 1,6 | 70,0 x 82,5 | 0,29 | | 12,5 x 21,5 | 1 | 90,0 x 100,0 | 0,29 | | 14,0 x 23,0 | 1,6 | | |
|
