Fabric Reinforced Air Hose
Other name: Air delivery hose, Air rubber hose, Flexible Reinforced Air Hoses, Reinforced air tubing, High pressure rubber air pipe line, Air hose with cloth inserted
Tube: Black, excellent air impervious synthetic rubber.
Reinforcement: High-tensile synthetic fabric or cotton cloth.
Cover: Black synthetic rubber, weather and abrasion resistant.
Applications: For delivery of compressed air or inert gases in factories, mines, construction work, etc. It may be used to connect the pneumatic tools, pneumatic machines and so on.

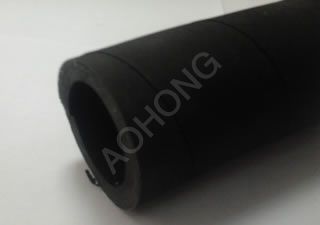

Working Temperature: -35℃ to 80℃. | | |  |  | | Structure picture | Real product picture | | | |
Specification:| I.D. | Ply. | W.P. | B.P. | LENGTH MAX. | | MM | INCH | MPA | MPA | M/ROLL | | 13 | 1/2" | 2~3 | 0.5~1.0 | 2.0~4.0 | 20 | | 16 | 5/8" | 3~4 | 0.5~1.0 | 2.0~4.0 | 20 | | 19 | 3/4" | 3~7 | 0.5~1.0 | 2.0~4.0 | 20 | | 25 | 1" | 4~7 | 0.5~1.0 | 2.0~4.0 | 20 | | 32 | 1.1/4" | 4~7 | 0.5~1.0 | 2.0~4.0 | 20 | | 38 | 1.1/2" | 4~8 | 0.5~1.0 | 2.0~4.0 | 20 | | 51 | 2" | 5~10 | 0.5~1.0 | 2.0~4.0 | 20 | | 64 | 2.1/2" | 5~10 | 0.5~1.0 | 2.0~4.0 | 20 | | 76 | 3" | 5~10 | 0.5~1.0 | 2.0~4.0 | 20 | | 89 | 3.1/2" | 5~12 | 0.5~1.0 | 2.0~4.0 | 20 | | 102 | 4" | 5~12 | 0.5~1.0 | 2.0~4.0 | 20 | | 127 | 5" | 5~12 | 0.5~1.0 | 2.0~4.0 | 20 | | 150 | 6" | 5~12 | 0.5~1.0 | 2.0~4.0 | 20 |
|
