Suction and Discharge Water Hose
Other name: pressure suction and discharge water hose, water suction hose, suction rubber hose, suction tube.
Tube: Black, smooth, synthetic rubber compound resistant to mud, sewage, waste water and week alkalizes and acids with PH value from 5 to 8.
Reinforcement: High-strength synthetic cord plus helix wire.
Cover: Black, smooth (wrapped finish) corrugated synthetic rubber compound resistant to abrasion, weathering, ozone and aging.
Application: Designed for water suction and discharge service, where a rugged yet flexible hose is required in industry, building and agriculture.

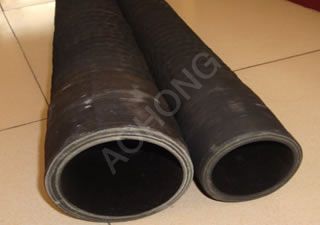

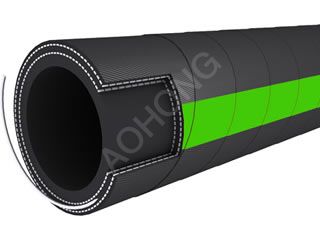

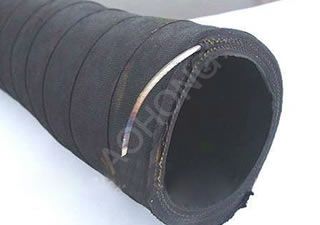

Working Temperature: -35℃ to 70℃ | | |  |  | | Structure picture | Structure picture |  |  | | Real product picture | Real product picture |
Specification:| I.D | O.D | W.P. | B.P. | WEIGHT | LENGTH MAX. | | MM | INCHI | MM | MPA | MPA | KG/M | M/ROLL | | 25 | 1” | 36 | 0.3~1.0 | 0.9~3.0 | 0.9 | 60 | | 32 | 1.1/4” | 45 | 0.3~1.0 | 0.9~3.0 | 1.1 | 60 | | 38 | 1.1/2” | 52 | 0.3~1.0 | 0.9~3.0 | 1.3 | 60 | | 51 | 2" | 65 | 0.3~1.0 | 0.9~3.0 | 1.4 | 60 | | 64 | 2.1/2" | 80 | 0.3~1.0 | 0.9~3.0 | 1.8 | 60 | | 76 | 3" | 94 | 0.3~1.0 | 0.9~3.0 | 2.1 | 60 | | 90 | 3.1/2" | 108 | 0.3~1.0 | 0.9~3.0 | 3 | 60 | | 102 | 4" | 122 | 0.3~1.0 | 0.9~3.0 | 3.7 | 60 | | 127 | 5" | 172 | 0.3~1.0 | 0.9~3.0 | 4.8 | 40 | | 152 | 6" | 182 | 0.3~1.0 | 0.9~3.0 | 7 | 40 | | 203 | 8" | 240 | 0.3~1.0 | 0.9~3.0 | 10 | 20 |
|
