Suction and Discharge Oil Hose

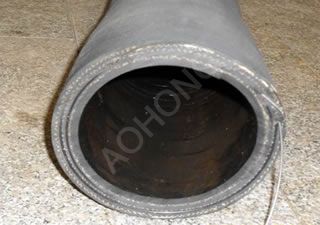

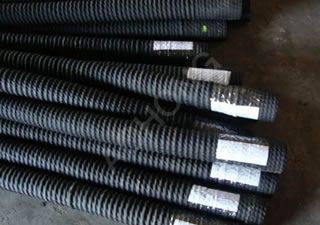

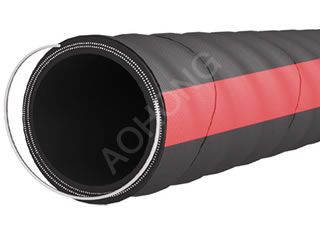

Other name: Oil suction hose, Oil resistance suction and discharge hose, pressure oil suction hose, Spiral wire reinforced rubber hose, corrugate rubber hose. Tube: Black, smooth, nitrile rubber compound. Reinforcement: High-strength synthetic cord plus helix wire. Cover: Black, smooth (wrapped finish) high grade chloroprene rubber, compounded for an excellent resistance to weather, ozone, abrasion and oil. Application: Used for the delivery and transfer of a wide range of petroleum products. Working Temperature: -40℃ to 100℃ | | | | Structure picture | Structure picture | | | Real product picture | Real product picture |
Specification:I.D | O.D | W.P. | B.P. | WEIGHT | LENGTH MAX. | MM | INCHI | MM | MPA | MPA | KG/M | M/ROLL | 25 | 1” | 36 | 0.3~1.0 | 0.9~3.0 | 0.9 | 60 | 32 | 1.1/4” | 45 | 0.3~1.0 | 0.9~3.0 | 1.1 | 60 | 38 | 1.1/2” | 52 | 0.3~1.0 | 0.9~3.0 | 1.3 | 60 | 51 | 2" | 65 | 0.3~1.0 | 0.9~3.0 | 1.4 | 60 | 64 | 2.1/2" | 80 | 0.3~1.0 | 0.9~3.0 | 1.8 | 60 | 76 | 3" | 94 | 0.3~1.0 | 0.9~3.0 | 2.1 | 60 | 90 | 3.1/2" | 108 | 0.3~1.0 | 0.9~3.0 | 3 | 60 | 102 | 4" | 122 | 0.3~1.0 | 0.9~3.0 | 3.7 | 60 | 127 | 5" | 172 | 0.3~1.0 | 0.9~3.0 | 4.8 | 40 | 152 | 6" | 182 | 0.3~1.0 | 0.9~3.0 | 7 | 40 | 203 | 8" | 240 | 0.3~1.0 | 0.9~3.0 | 10 | 20 |
|
