PVC Air Hose

Other name: Flexible PVC Air Hoses, PVC Air Tubing, High pressure air hose tubing. PVC Air Compressor Hoses, air hoses pipe.
Construction: The middle layer with high strength synthetic fiber , both inner and outer are made of PVC compound material.
Application: General High-pressure using on industrial applications, Compressed air in garages and service stations, Factory air lines, pesticide spraying. Automation machinery and pneumatic lines, etc.
Characteristics: High pressure resistance, Good flexible and durability against climate, abrasion, anti-corrosion chemical.
Working Temperature: -10°C To +65°C (14°F To +150°F)


PVC Air HosePVC Air Hose

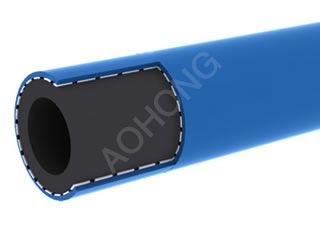

Structure pictureStructure picture

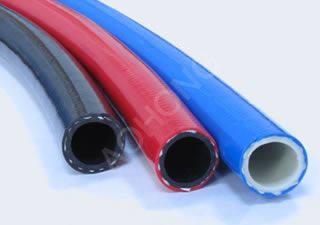

PVC Air HosePVC Air Hose

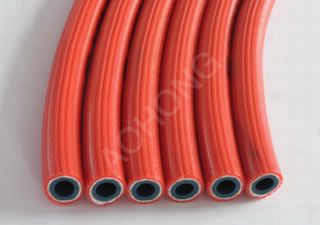

Real product pictureReal product picture
Specification:

I.D.

O.D.

Length

W.P.

B.P.

Weight

Measure

Inch

mm

mm

m/roll

bar

bar

kg/roll

D * H mm

1/4

6.5

12

100

20

60

11

400*150

5/16

8.5

14

100

20

60

13

420*150

3/8

10

16

100

20

60

16.5

520*150

1/2

13

20

100

20

60

12

440*150

5/8

16

25

50

20

60

19.5

500*160

3/4

19

28.5

50

20

55

24

560*180

1

25

34.5

50

15

45

30

600*260

1.1/4

32

44

50

15

45

48

800*260

1.1/2

38

50

50

15

45

56

950*300

2

50

64

50

10

30

84

1100*310




*

*

*

*
