PVC Helix Suction Hose
Other name: PVC suction hoses, Spiral Reinforced PVC Suction Hoses, Water suction hoses with helix, PVC Suction and discharge hoses, PVC grit hoses. PVC srcew
Wall: high quality plasticized PVC.
Reinforcement: Rigid PVC helix reinforced anti-choc spiral.
Application: very ideally for conveying water, oil and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.
Construction:

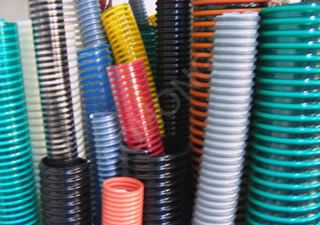

Working Temperature: -10°C To +65°C (14°F To +150°F) | | |  |  | | Structure picture | Real product picture | | | |
Specification:I.D. | Thickness | Weight | Thickness | Weight | Thickness | Weight | Thickness | Weight | Inch | mm | mm | kg/m | mm | kg/m | mm | kg/m | mm | kg/m | 3/4" | 19 | 2 | 0.18 | 2.5 | 0.23 | 3 | 0.28 | 3.5 | 0.32 | 1" | 25 | 2 | 0.23 | 2.5 | 0.29 | 3 | 0.35 | 3.5 | 0.41 | 1.1/4" | 32 | 2.5 | 0.38 | 3 | 0.45 | 3.5 | 0.53 | 4 | 0.6 | 1.1/2" | 38 | 2.5 | 0.44 | 3 | 0.53 | 3.5 | 0.63 | 4 | 0.72 | 2" | 50 | 3 | 0.7 | 3.5 | 0.82 | 4 | 0.95 | 4.5 | 1.1 | 2.1/2" | 63 | 3 | 0.88 | 3.5 | 1.04 | 4 | 1.19 | 4.5 | 1.38 | 3" | 75 | 3.5 | 1.2 | 4 | 1.38 | 4.5 | 1.56 | 5 | 1.8 | 3.1/2" | 88 | 3.5 | 1.4 | 4 | 1.62 | 4.5 | 1.83 | 5 | 2.2 | 4" | 100 | 4 | 1.59 | 4.5 | 1.84 | 5 | 2.08 | 5.5 | 2.5 | 5" | 125 | 4.5 | 2.59 | 5 | 2.88 | 5.5 | 3.18 | 6 | 3.5 | 6" | 150 | 5 | 3.5 | 6 | 4.1 | 7 | 4.79 | 8 | 5.5 | 8" | 200 | 6 | 5.1 | 7 | 5.9 | 8 | 6.8 | 9 | 7.58 |
|
