S.S. Wire Braided Teflon Hose (Corrugated)

Tube: PTFE hose, for high and low temperature uses, anti-corrosive, non-stick.

Cover: SUS304 stainless steel braided, higher pressure resistance, all kinds of couplings can be available.

Application: The hydraulic hose, pneumatic hose and steam hose of the industries of rubber, plastic, clothing, auto, engine bed, shipbuilding, electrical machinery, diesel alternate liquid, gas, and higher corrosive medium and longer service life compared with other hoses.

Working temperature:  Constant use: -50℃~+210℃; Instant use: -70℃~+260℃

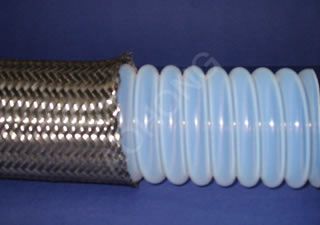

S.S. Wire Braided Teflon HoseS.S. Wire Braided Teflon Hose
Real product pictureReal product picture
Specification:

I.D

O.D

THICKNESS

W.P

B.P

WEIGHT

LENGTH

INCH

MM

MM

MM

BAR

BAR

G/M

M/ROLL

1/8"

3.2

6.2

1

256

625

70

≥50

3/16"

4.8

7.7

0.85

240

570

90

≥50

1/4"

6

8.8

0.85

232

552

110

≥50

5/16"

7.9

10.8

0.85

194

540

135

≥50

3/8"

9.5

12.4

0.85

162

450

165

≥50

1/2"

12.7

15.9

1

139

425

230

≥50

5/8"

15.9

19.3

1

101

385

276

≥50

3/4"

19

22.3

1.2

92

315

405

≥40

7/8"

22.2

25.8

1.2

80

240

460

≥40

1"

25.4

29.8

1.5

72

200

510

≥20




*

*

*

*
